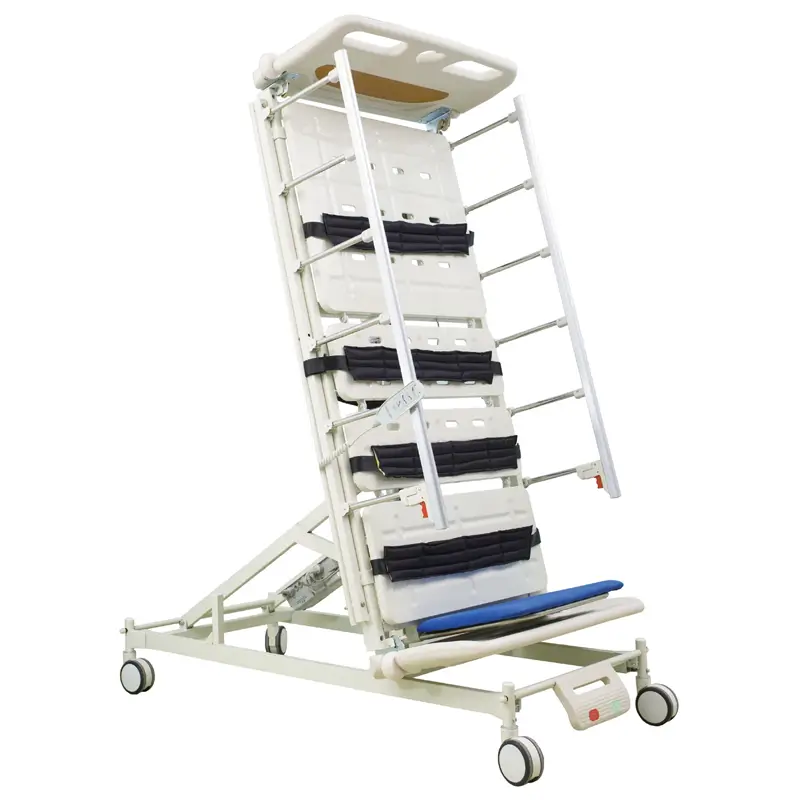

Product Name: Three Function Electric Standing Hospital Bed
Product Model: GS-890
Product Specifications: 2220*980*500mm
Product Functions:
1. Backward adjustment 2. Leg elevation
3. Bed surface can be raised to 0 – 80° ± 5°
Material description:
1. The angle of the bed body in the standing position can be electrically adjusted, which is beneficial for preventing complications caused by long-term bed rest. 2. The bed frame can bear a weight of ≥ 240kg, and the dynamic load capacity of the backrest is ≥ 170kg. 3. The bed frame is made by welding rectangular carbon steel pipes with a size of ≥ 30×60×1.2mm. The entire bed is welded by a robot. 4. The metal surface is coated with a double-layer technology, which is resistant to mold, fading, and does not peel off. The coating does not rust.
5. The bed panel is made of cold-rolled steel plate no less than 1.2mm, and is formed by overall molding. The four corners are smooth and complete.
6. It uses 3 linear motors, with low noise, compatible with EMC electromagnetic waves, and no leakage.
7. The head and tail boards of the bed are made of newly developed pure PE raw materials through blow molding. The head and tail boards both adopt hook-type, fixed on the bed frame, and embedded with rolling anti-collision wheels.
8. The bed side guardrail system: 6-level structure, aluminum alloy crossbars + stainless steel columns, with hand protection design, and can be adjusted up and down as needed.
9. It has a hanging handheld controller, clear identification, simple operation, and realizes the control and locking functions of the bed body.
10. The casters use 125mm double-sided central control casters, with fully enclosed self-lubricating bearings, waterproof, and preventing foreign objects from entering.
11. It uses ABS brake pedals, with a steel brake device inside, and a stripe to increase friction.
12. There are 4 drip tray sockets, and 4 drainage bag hooks are provided, for multi-position infusion drainage.
13. The stainless steel double-section drip frame, with 4 claws. fourteen It is equipped with an emergency stop button. In case of an emergency, pressing this button quickly can achieve the protective measure.
15. It is equipped with a special foot pedal for assisting patients in standing training.
16. It is equipped with 4 pieces of Velcro and a double safety protection belt.
17. It is a green, healthy and environmentally friendly product, using antibacterial powder coating.
Standard configuration:
1 headboard tailboard, 4 aluminum alloy railings, 3 linear motors, 1 electrical control system, 1 handheld controller, 1 battery, 1 emergency stop switch, 1 set of central control casters, 1 U-shaped ABS brake pedal, 1 stainless steel infusion stand, 1 ABS medical record card, 4 steel spray-painted drainage hooks, 1 foot pedal, 4 safety protection belts.
